Ice Sculptor's Mark

How do glaciers shape the land?
You've probably seen mountains with sharp peaks and valleys carved into perfect U-shapes, like someone took a giant scoo

You've probably seen mountains with sharp peaks and valleys carved into perfect U-shapes, like someone took a giant scoop to the earth. Who did all that sculpting? Glaciers โ€” rivers of ice so heavy and so slow that they reshape entire landscapes as they crawl.

A glacier starts as **snow piling up year after year** in a cold place where winter's snowfall never fully melts. The we

A glacier starts as snow piling up year after year in a cold place where winter's snowfall never fully melts. The weight of all that snow presses down, squeezing out the air, turning the bottom layers into solid ice. Eventually you've got a slab of ice so thick โ€” sometimes a mile deep โ€” that it starts to flow downhill like extremely slow-motion honey.

~~Here's the wild part:~~ ice is hard, but put enough weight on it and it **behaves like a liquid**. The glacier slides

Here's the wild part: ice is hard, but put enough weight on it and it behaves like a liquid. The glacier slides on a thin layer of meltwater at its base, and the ice itself deforms, creeping forward inches or feet per day. It's a bulldozer made of frozen water, and it's been moving for thousands of years.

As the glacier flows, it plucks rocks right out of the ground. Ice seeps into cracks in the bedrock, freezes solid, and

As the glacier flows, it plucks rocks right out of the ground. Ice seeps into cracks in the bedrock, freezes solid, and when the glacier moves forward it rips those rocks free โ€” a process called plucking. Now the glacier has teeth: chunks of rock frozen into its belly, scraping the ground beneath like sandpaper on wood.

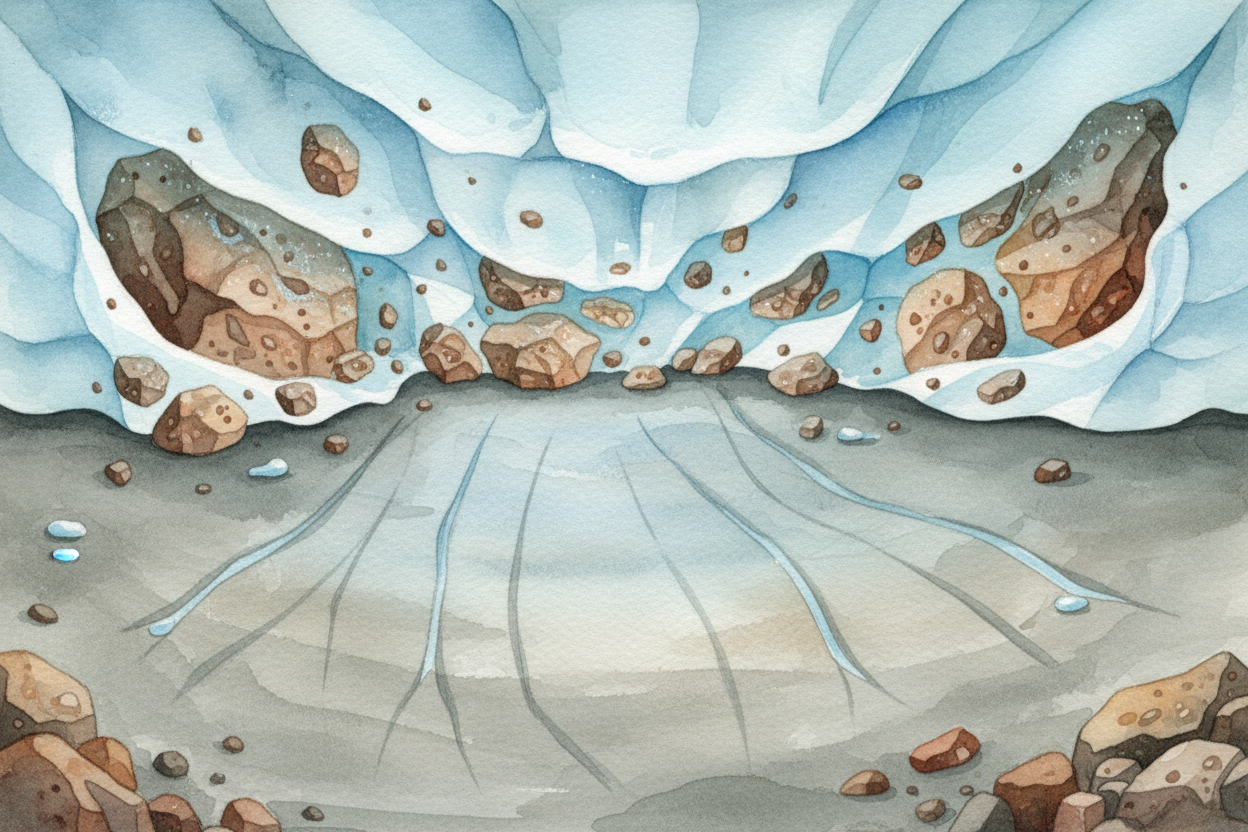

That scraping โ€” called ++abrasion++ โ€” grinds the bedrock smooth and carves deep grooves into the valley floor. The rocks

That scraping โ€” called abrasion โ€” grinds the bedrock smooth and carves deep grooves into the valley floor. The rocks in the ice act like the grit on sandpaper, scratching parallel lines into the stone. Some of those scratch marks, called striations, are still visible today on rocks that glaciers passed over ten thousand years ago.

Rivers carve **V-shaped valleys** โ€” narrow at the bottom, steep on the sides. But glaciers are wide and thick, so they c

Rivers carve V-shaped valleys โ€” narrow at the bottom, steep on the sides. But glaciers are wide and thick, so they carve U-shaped valleys โ€” broad, flat floors with steep walls rising on both sides. Picture a river valley, then imagine a half-mile of ice filling it edge to edge, bulldozing the sides outward as it grinds down the floor.

When a glacier finally melts โ€” either because the climate warms or it flows to lower, warmer ground โ€” it leaves behind e

When a glacier finally melts โ€” either because the climate warms or it flows to lower, warmer ground โ€” it leaves behind everything it was carrying. Huge boulders called erratics sit randomly in fields, dropped there by the ice. Piles of rock and sediment, called moraines, mark where the glacier's edges were. The land is littered with the glacier's cargo.

Glaciers also gouge out ~~bowl-shaped hollows~~ high in the mountains โ€” ++cirques++ โ€” where the ice first accumulated. W

Glaciers also gouge out bowl-shaped hollows high in the mountains โ€” cirques โ€” where the ice first accumulated. When the glacier melts, those bowls fill with water and become alpine lakes, bright blue and impossibly clear. Thousands of mountain lakes exist only because a glacier scooped out the basin and left.

So when you see a valley with that **telltale U-shape**, or a **lone boulder sitting in the middle of a prairie**, or a

So when you see a valley with that telltale U-shape, or a lone boulder sitting in the middle of a prairie, or a mountain lake too perfect to be random โ€” you're looking at a glacier's signature. The ice moved on, but the land remembers every inch of the journey.
