Invisible Light Command

How does a remote control change the channel?
You're on the couch. The show's boring. You point the remote at the TV, press a button, and ~~BAM~~ โ€” new channel. **No

You're on the couch. The show's boring. You point the remote at the TV, press a button, and BAM โ€” new channel. No wires. No touching. Just... magic? Not quite. Let's follow that invisible beam.

Inside the remote, there's a tiny lightbulb called an ++infrared LED++. When you press a button, it **blinks super fast*

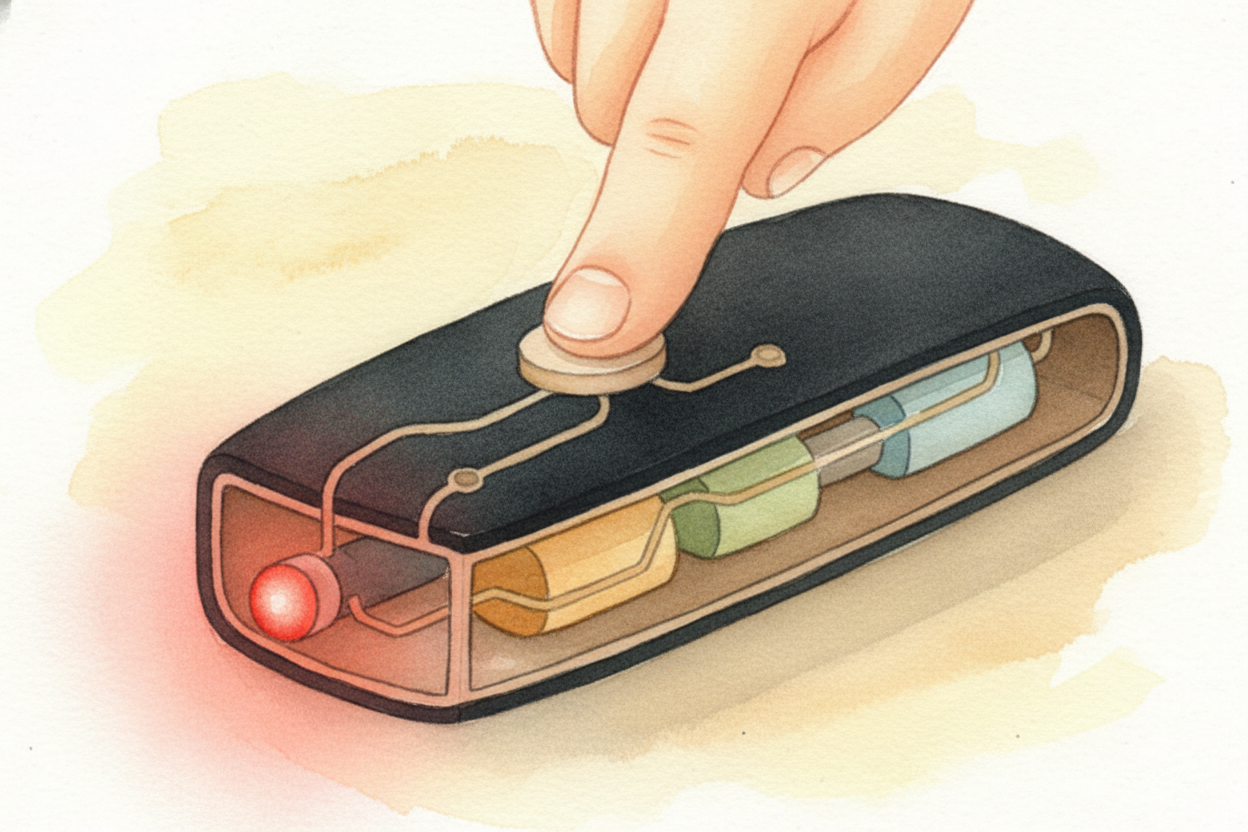

Inside the remote, there's a tiny lightbulb called an infrared LED. When you press a button, it blinks super fast โ€” so fast your eyes can't see it. It's flashing a secret code in invisible light.

Infrared light is **just like regular light**, but your eyes aren't built to catch it. ~~TV remotes love it~~ because it

Infrared light is just like regular light, but your eyes aren't built to catch it. TV remotes love it because it's invisible, it travels in a straight line, and it doesn't accidentally change your neighbor's channel through the wall.

The LED blinks in a pattern โ€” ~~long flash, short flash, short, long, short~~ โ€” like ++Morse code++ made of light. *Each

The LED blinks in a pattern โ€” long flash, short flash, short, long, short โ€” like Morse code made of light. Each button has its own pattern. "Channel up" is one rhythm. "Volume down" is another. The TV has to learn which pattern means what.

On the front of your TV, there's a little black window โ€” the ++infrared receiver++. It's basically **a tiny eye that can

On the front of your TV, there's a little black window โ€” the infrared receiver. It's basically a tiny eye that can see infrared light. When the blinking beam hits it, the receiver wakes up and says, "Message incoming!"

The receiver decodes the blink pattern and sends it to the TV's brain โ€” a little computer inside. The computer checks it

The receiver decodes the blink pattern and sends it to the TV's brain โ€” a little computer inside. The computer checks its list: "Ah, that pattern means 'jump to channel 7.'" So it does.

The TV tunes to the new channel by **grabbing a different signal** from the cable or antenna โ€” like switching from one r

The TV tunes to the new channel by grabbing a different signal from the cable or antenna โ€” like switching from one radio station to another. Pixels rearrange, sound changes, and your screen fills with something new.

All of that happens in a **fraction of a second**. You press. Light blinks. Receiver catches it. Computer obeys. Channel

All of that happens in a fraction of a second. You press. Light blinks. Receiver catches it. Computer obeys. Channel changes. No wires, no shouting โ€” just a beam of invisible light carrying one very polite command.
