The Dancing Metal Strip

How does a thermostat know the temperature?
You walk past the little white box on the wall twenty times a day and never think about it. ~~But right now, at this ver

You walk past the little white box on the wall twenty times a day and never think about it. But right now, at this very second, it's taking your temperature โ€” well, the room's temperature โ€” and deciding whether you need rescuing from the heat or the cold.

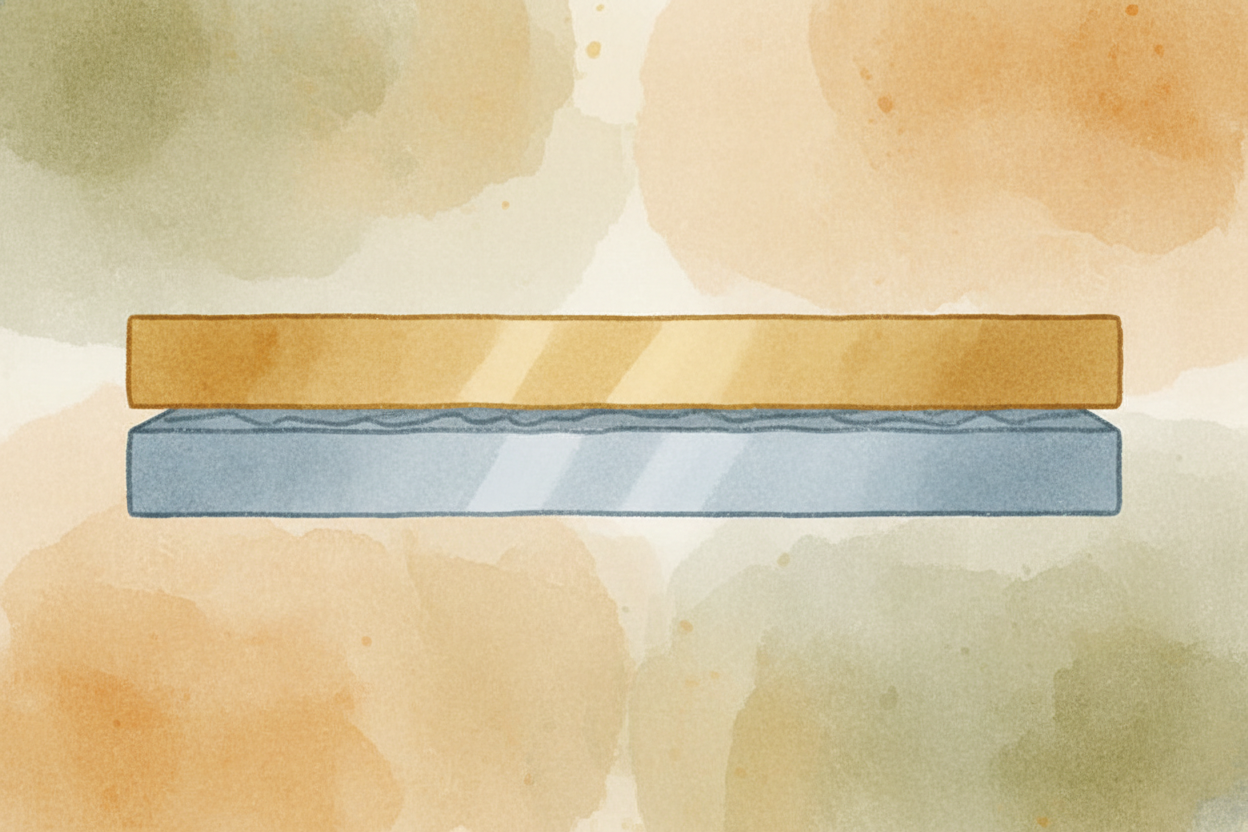

Inside that box sits a tiny strip of metal. Actually, it's **two different metals** โ€” say, brass and steel โ€” pressed tog

Inside that box sits a tiny strip of metal. Actually, it's two different metals โ€” say, brass and steel โ€” pressed together into one ribbon, like a two-layer sandwich. Here's the weird part: when metal gets hot, it expands. When it cools down, it shrinks. You've seen this โ€” a jar lid loosens under hot water, tightens in the cold.

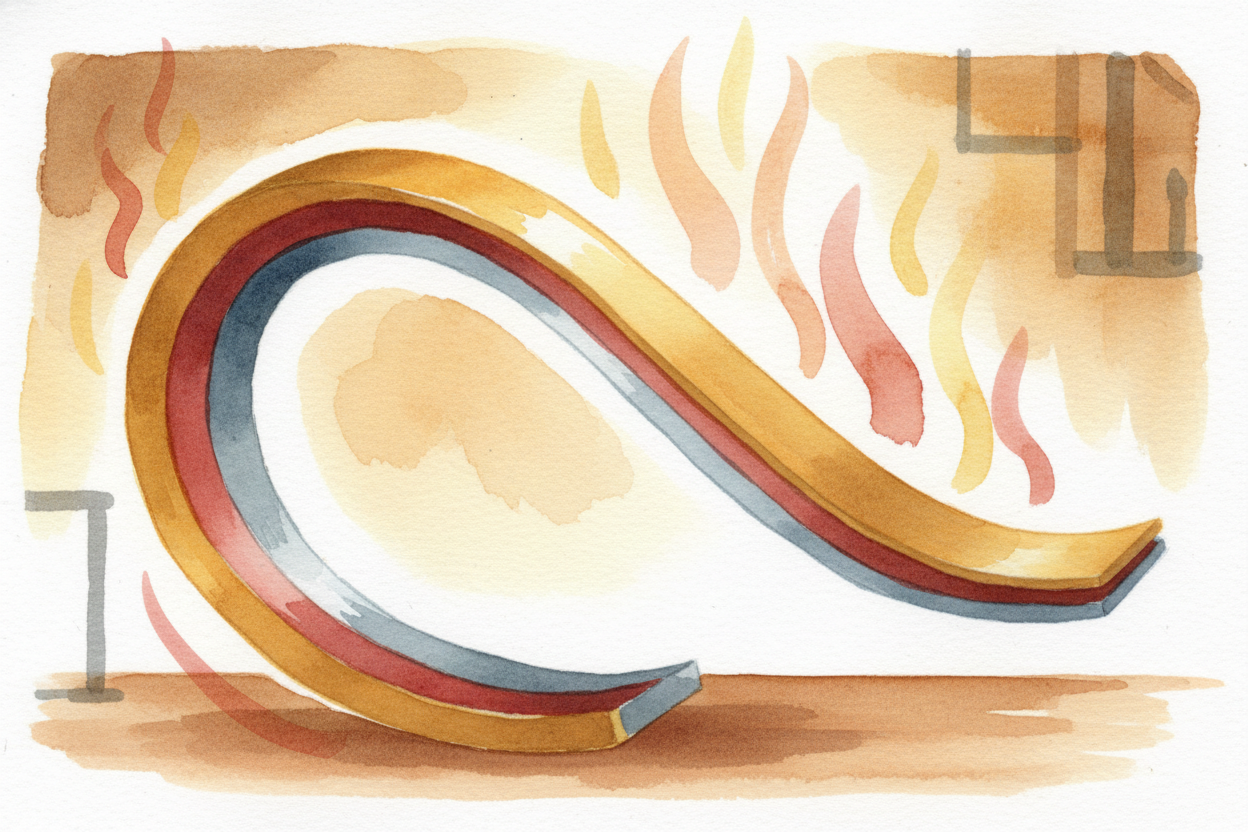

~~But brass and steel don't expand at the same rate.~~ When the room heats up, **the brass layer stretches more than the

But brass and steel don't expand at the same rate. When the room heats up, the brass layer stretches more than the steel. Since they're glued together, the whole strip bends โ€” always curving toward the steel side, the one that didn't stretch as much.

Cool the room down, and ~~the opposite happens~~. The brass shrinks faster than the steel, so the strip bends the other

Cool the room down, and the opposite happens. The brass shrinks faster than the steel, so the strip bends the other way. It's like a tiny metal mood ring, changing its shape with every degree.

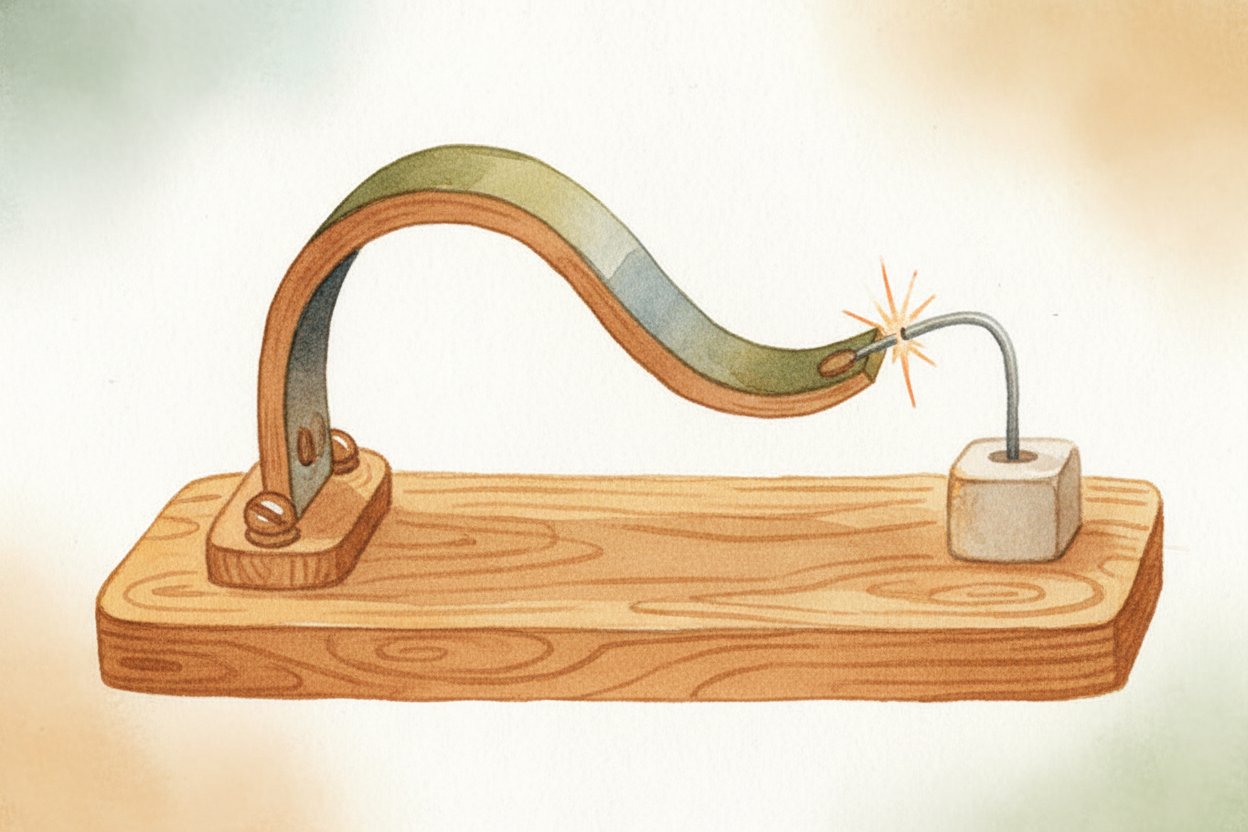

~~Now here's where it gets clever.~~ One end of that strip is bolted down. The other end is **free to move** โ€” and right

Now here's where it gets clever. One end of that strip is bolted down. The other end is free to move โ€” and right at the tip, there's an electrical contact, like a switch. When the strip bends far enough one way, the tip touches a wire and completes a circuit. Click. The heater turns on.

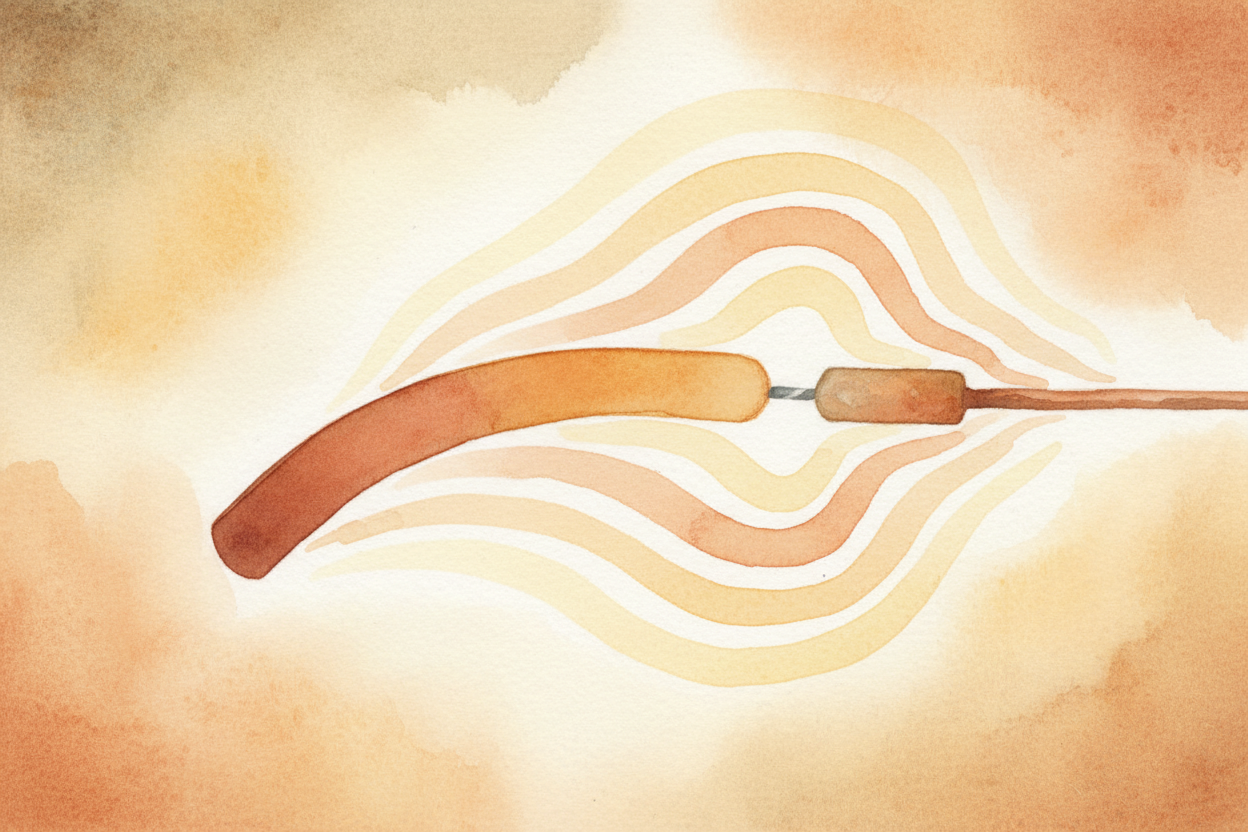

The heater warms the room. The strip feels that warmth, bends back the other way, and breaks the contact. ~~Click.~~ Hea

The heater warms the room. The strip feels that warmth, bends back the other way, and breaks the contact. Click. Heater off. It's a loop: the thermostat makes itself wrong, then makes itself right again, over and over, all day and all night.

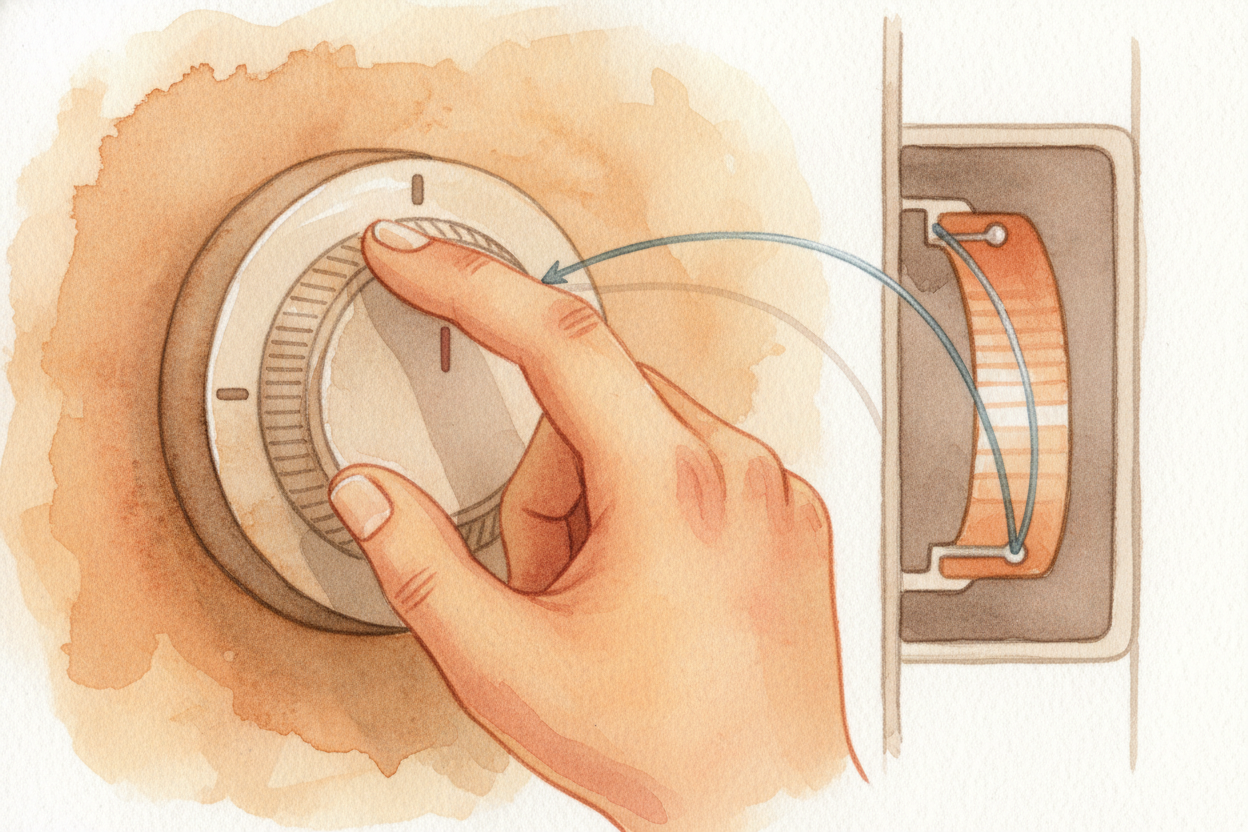

You set the thermostat to 68 degrees by **turning a dial** that moves the wire closer or farther from the strip's tip. ~

You set the thermostat to 68 degrees by turning a dial that moves the wire closer or farther from the strip's tip. Want it warmer? Move the wire closer โ€” now the strip doesn't have to bend as far to make contact. Want it cooler? Move the wire away.

Modern thermostats use computer chips and digital sensors instead of metal strips, but they're doing the same dance: ~~m

Modern thermostats use computer chips and digital sensors instead of metal strips, but they're doing the same dance: measure, compare, act, repeat. That little box on the wall is having a conversation with your room, every second, in a language of heat and metal and electricity โ€” and you get to stay comfortable without thinking about it once.
