The Instant Question

What is a derivative and how does it measure change?
Imagine you're driving up a winding mountain road. Sometimes you crawl, sometimes you zoom. A derivative is just a fancy

Imagine you're driving up a winding mountain road. Sometimes you crawl, sometimes you zoom. A derivative is just a fancy name for one simple question: right now, this instant, how fast are things changing? Not over the whole trip โ€” right HERE. That's the whole idea. Everything else is just clever ways to find that number.

Let's start with something you already know: speed. If you drive 60 miles in one hour, your average speed is 60 miles pe

Let's start with something you already know: speed. If you drive 60 miles in one hour, your average speed is 60 miles per hour. Easy. You took the distance and divided by the time. That's "change in position" divided by "change in time." A derivative is basically this same recipe โ€” just zoomed way, way in.

~~But here's the trouble.~~ "60 miles per hour" is the *AVERAGE over the whole hour*. It says nothing about that one mom

But here's the trouble. "60 miles per hour" is the AVERAGE over the whole hour. It says nothing about that one moment you hit the gas, or the moment you braked for a deer. Your real speed was wiggling around the entire time. So how do you measure your speed at one single instant, when an instant has no length at all?

~~Here's the trick that cracks it open.~~ Instead of measuring over a whole hour, measure over a smaller window. How far

Here's the trick that cracks it open. Instead of measuring over a whole hour, measure over a smaller window. How far did you go in one minute? Now one second. Now half a second. As your window shrinks toward zero, your average speed over that tiny window gets closer and closer to your TRUE speed at that instant.

We have a word for "what a number sneaks up on as you shrink the window": a ++limit++. The derivative is the limit of yo

We have a word for "what a number sneaks up on as you shrink the window": a limit. The derivative is the limit of your average speed as the time window shrinks to nothing. You never use a window of exactly zero โ€” you can't divide by zero! You just see what value the answer is heading toward, and grab that.

Now let's draw it. ~~Picture a graph:~~ the bumpy line of your whole journey, distance going up as time goes right. Pick

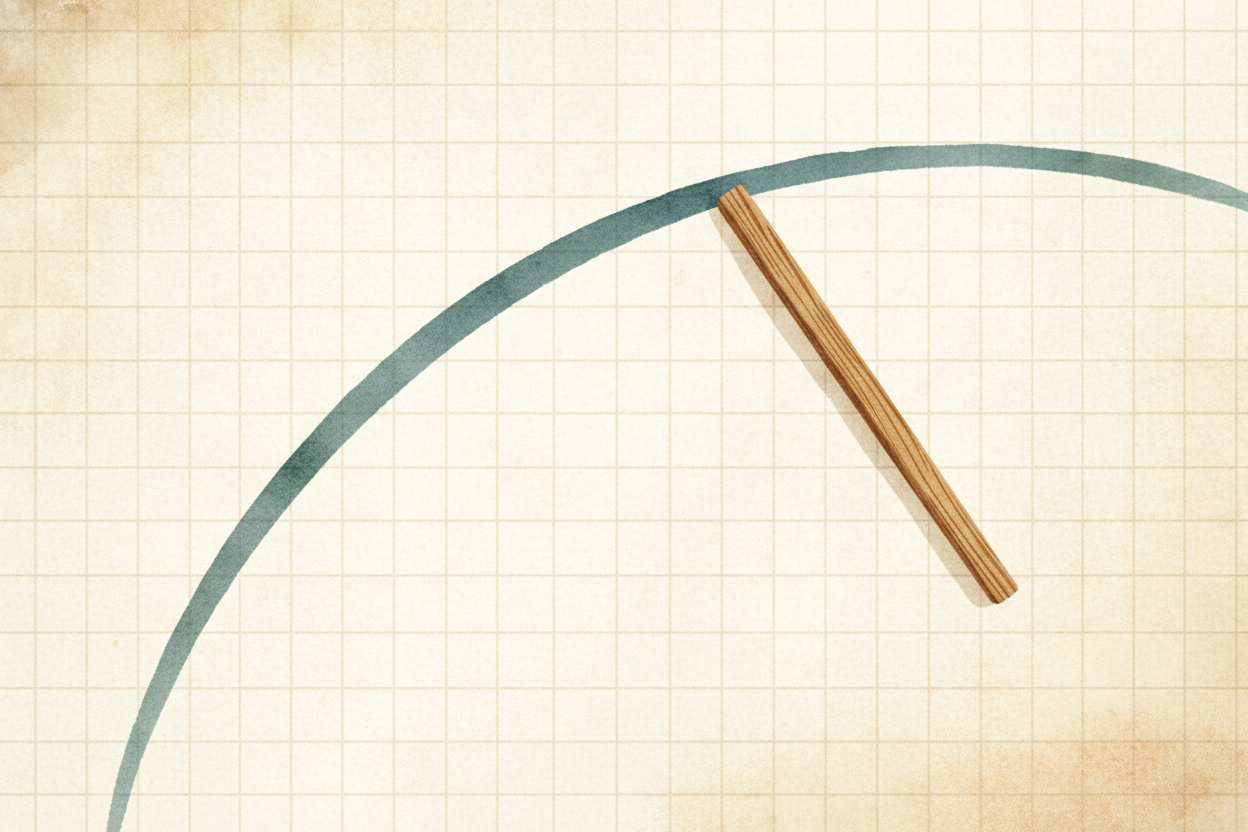

Now let's draw it. Picture a graph: the bumpy line of your whole journey, distance going up as time goes right. Pick a point on that line. Lay a straight stick so it just kisses the curve at that point and matches its tilt. That kissing stick is called the tangent line โ€” and its steepness IS the derivative at that point.

So **steepness is the secret**. Where the curve climbs steeply, *the derivative is a big number* โ€” _things are changing

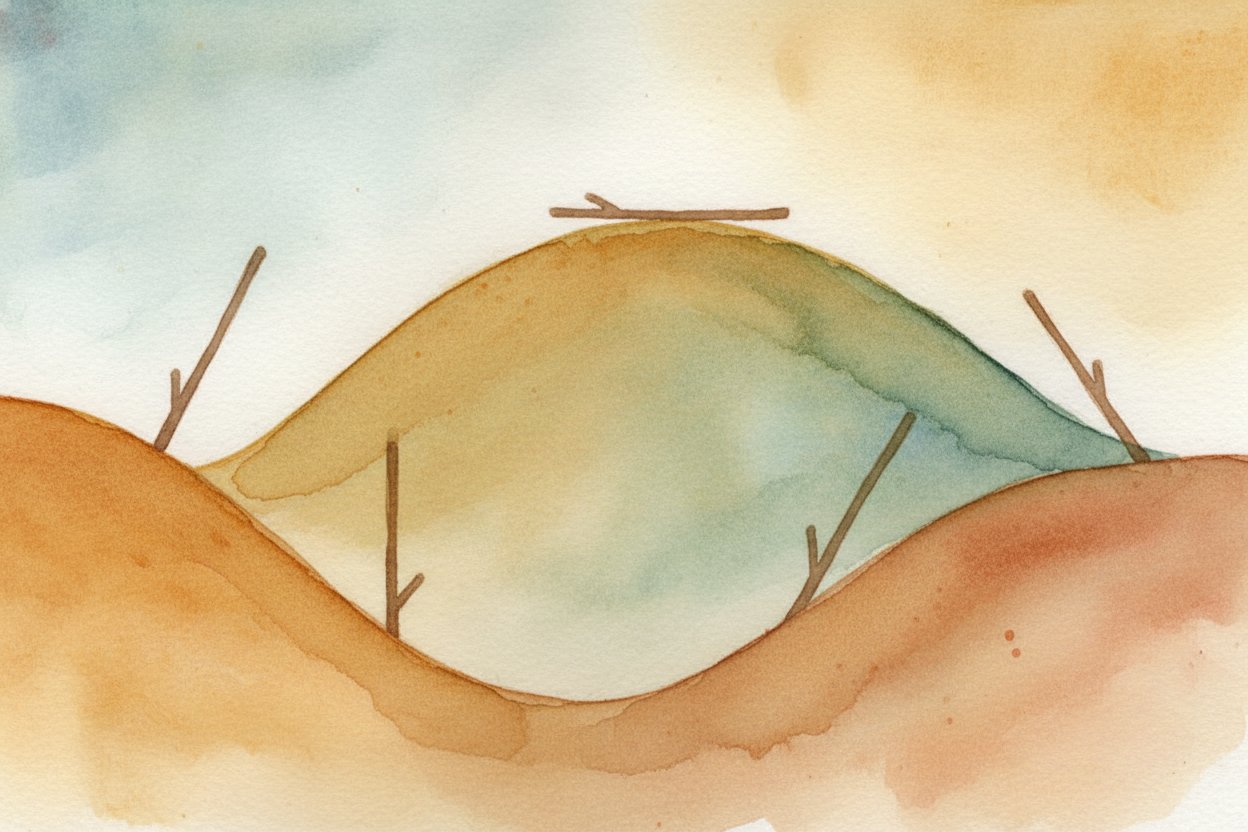

So steepness is the secret. Where the curve climbs steeply, the derivative is a big number โ€” things are changing fast. Where the curve is nearly flat, the derivative is small โ€” barely any change. And right at the very top of a hill, where the curve levels off before coming down? The tangent is perfectly flat, so the derivative is exactly zero.

And it isn't only about cars. **ANY changing thing** has a derivative. How fast a plant is growing. How quickly a cup of

And it isn't only about cars. ANY changing thing has a derivative. How fast a plant is growing. How quickly a cup of cocoa is cooling. How steeply a roller coaster drops. Each one is just "how much the thing changes, divided by how much time passes" โ€” squeezed down to a single instant.

So that's a derivative: a **built-in speedometer** for absolutely anything that changes. It takes a messy, wiggling stor

So that's a derivative: a built-in speedometer for absolutely anything that changes. It takes a messy, wiggling story and answers one crisp question at every moment โ€” "how fast, right now?" Slow when it's flat. Fast when it's steep. Zero at the very top of the hill.
