Triangle's Tile Promise

What is the Pythagorean theorem and why is it true?
~~Picture a right triangle~~ — a triangle with **one perfect square corner**, like the corner of this page. It has three

Picture a right triangle — a triangle with one perfect square corner, like the corner of this page. It has three sides. There's an old, famous rule about those three sides, and it has been quietly true for thousands of years. People call it the Pythagorean theorem, and once you see why it works, you can't un-see it.

Let's name the sides. **The two short sides that meet at the square corner** are the legs. The long slanted side across

Let's name the sides. The two short sides that meet at the square corner are the legs. The long slanted side across from that corner — the longest one — is the hypotenuse, which is just a fancy word for "the slanty long side." That's all the vocabulary we'll need.

The theorem says something delightfully simple. ~~Build a square on each leg~~, and build a square on the hypotenuse. Th

The theorem says something delightfully simple. Build a square on each leg, and build a square on the hypotenuse. Then the two smaller squares, added together, exactly equal the big square. People write it as + = . But forget the letters for a second — it's really a story about three squares made of tiles.

~~"Equal? Really?"~~ you might ask. Yes — *equal in area*, meaning equal in the number of little tiles inside. If you co

"Equal? Really?" you might ask. Yes — equal in area, meaning equal in the number of little tiles inside. If you could peel all the tiles off the two smaller squares, you'd have exactly enough to fill the biggest square. Not one tile short, not one left over. Every single time.

~~But WHY is it always true?~~ **Here's the magic trick.** Take **four copies of your triangle** and a single big square

But WHY is it always true? Here's the magic trick. Take four copies of your triangle and a single big square frame. You can arrange the four triangles inside that frame two different ways. The frame stays the exact same size both times — same big square, same total space.

In the first arrangement, the four triangles ~~huddle into the corners~~. The empty space they leave behind is **one squ

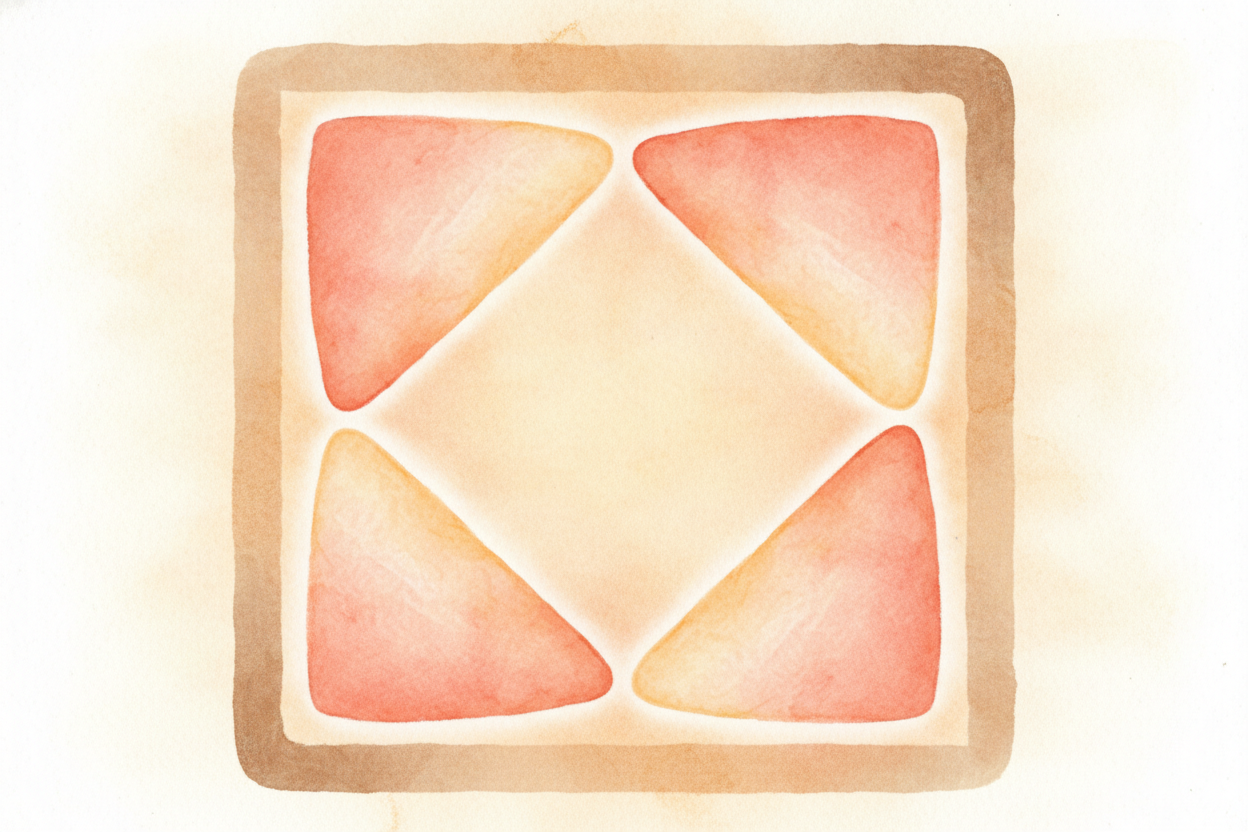

In the first arrangement, the four triangles huddle into the corners. The empty space they leave behind is one square — and it's the square on the hypotenuse, the square. Picture a tilted square sitting right in the middle, surrounded by four triangle friends.

Now ~~slide the same four triangles around~~ — same frame, same triangles. This time they leave behind **TWO empty squar

Now slide the same four triangles around — same frame, same triangles. This time they leave behind TWO empty squares: one the size of the short leg, one the size of the long leg. That's and , side by side. We didn't add or remove anything — we just shuffled.

~~And there's the secret.~~ Both arrangements live inside the **very same frame**, with the very same four triangles. So

And there's the secret. Both arrangements live inside the very same frame, with the very same four triangles. So whatever space is left over must be equal. First time, the leftover was c². Second time, it was a² plus b². Same leftover — so a² + b² = c². The triangle never had a choice. It was true the whole time.

So the ++Pythagorean theorem++ isn't a spell or an opinion. It's just **shapes telling the truth about themselves**. Eve

So the Pythagorean theorem isn't a spell or an opinion. It's just shapes telling the truth about themselves. Every right triangle in the world — on a soccer field, in a roof, on a ladder leaning against a wall — is quietly carrying this little promise: the two leg-squares always add up to the slanty one.
